DM-1080C fully automatic vertical laminator offers water-based dry lamination and pre-coating. With speeds up to 100m/min, precise servo edge control, and advanced drying system, it ensures high-quality, efficient production.

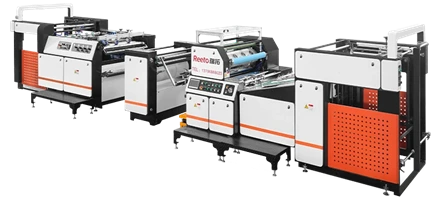

The JDM-1080C fully automatic high-speed vertical laminator represents a breakthrough in post-press finishing technology. Designed for versatility, it seamlessly handles both water-based dry lamination and pre-coating applications, eliminating the need for separate machines and reducing operational costs. With a maximum coating size of 1280×880mm and a composite pressure range of 5-15 MPa, it accommodates diverse production requirements across publishing, packaging, and advertising industries.
Equipped with a non-terminating paper feeding system that allows for pre-stacking up to 1150mm, the machine minimizes downtime and boosts overall productivity. Its servo edge lamination technology ensures precise alignment, reducing material waste by up to 15% compared to traditional models. The chrome-plated roller gluing system guarantees accuracy within 0.008mm, optimizing glue usage while maintaining consistent coating quality.
Advanced features like the strong hot air drying system and electromagnetic heating hot pressing roller enable rapid drying and uniform temperature distribution, ensuring superior laminating results even at maximum speeds of 100m/min. Safety is prioritized with centralized control systems from trusted brands like Omron, providing operators with intuitive, reliable control over all machine functions.
》 Enhanced Aesthetics and Stability
》 Non-Stop Paper Feeding System
》 Precision Servo Edge Lamination
》 Optional Powder Removal Device
》 High-Accuracy Chrome-Plated Roller Gluing
》 Rapid Hot Air Drying System
》 Uniform Electromagnetic Heating
》 Omron Centralized Control System
| Model | RFM-1080C | RFM-1300C |
| Max. coating size | 1080×880mm | 1280×880mm |
| Min. coating size | 280×350 | 280×350 |
| Speed | 5-100m/min | 5-100m/min |
| Composite pressure | 5-15 MPa | 5-15 MPa |
| Paper specifications | 128-500g/m² | 128-500g/m² |
| Total power | 50kW | 55kw |
| Volume (L×W×H) | 7500mm×2100mm×2800mm | 7500mm×2300mm×2800mm |
| Weight | 7500KG | 8000KG |
Click to consult and instantly connect with your dedicated printing consultant.
It seamlessly combines water-based dry lamination and pre-coating applications, eliminating the need for two separate machines.
Precision servo edge lamination technology ensures perfect alignment, reducing material waste, while the chrome-plated roller system optimizes glue usage.
It features a strong hot air drying system and an electromagnetic heating hot press roller for rapid drying and uniform temperature.
It uses a centralized control system from Omron, a trusted brand, providing operators with intuitive and reliable control over all functions.
Yes, its non-stop paper feeding system supports pre-stacking up to 1150mm, minimizing downtime and boosting continuous productivity.
