Automatic High Speed Laminating Machine

Jiada JDM-1080EM Automatic High-Speed Laminating Machine: 3-in-1 functionality for water-based/oil-based glues and pre-coated films. Equipped with PLC/CPU control, human-machine interface, and non-terminating feeding system for fully automated paper processing.

Max Paper Size:
1080×880mm
Working Pressure:
15Mpa
Speed:
10-100m/min

Get your customized solution

Product Introduction

The JDM-1080EM Automatic High-Speed Laminating Machine represents the latest advancement in vertical lamination technology from Wenzhou Jiada Printing Machinery Co., Ltd. Designed for professional printing and packaging applications, this versatile machine supports three lamination methods in one compact unit: water-based glue, oil-based glue, and pre-coated film processing.

Built with industrial-grade components including frequency conversion speed regulation, PLC and CPU centralized control systems, the JDM-1080EM ensures precise operation across all production stages. The user-friendly human-machine interface simplifies parameter adjustment and production monitoring, while the integrated non--terminatingfeeding system enables continuous workflow optimization.

This all-in-one solution automates the entire lamination process from paper feeding and film application to precision cutting and finished product collection. With a maximum processing speed of up to 100 meters per minute, the JDM-1080EM delivers exceptional productivity while maintaining consistent lamination quality.

Ideal for commercial printers, packaging manufacturers, and bookbinding workshops, the JDM-1080EM handles paper sizes from 300x300mm to 1080x1100mm with paper weights ranging from 80-500gsm. Its robust construction and advanced control systems ensure reliable performance in high-volume production environments.

Product Features

》 Triple Functionality: Single machine supports water-based gluing, oil-based gluing, and pre-coated film lamination processes

》 Advanced Control System: PLC and CPU centralized control with frequency conversion speed regulation for precise operation

》 Non-Stop Operation: Integrated feeding system enables continuous production without downtime for material replenishment

》 Full Automation: Complete workflow automation from paper feeding through lamination, cutting, and finished product collection

》 User-Friendly Interface: Intuitive human-machine interface simplifies operation and production monitoring

》 High-Speed Performance: Capable of processing up to 100 meters per minute for maximum productivity

》 Versatile Compatibility: Handles paper sizes from 300x300mm to 1080x1100mm with 80-500gsm paper weight range

》 Robust Construction: Industrial-grade components ensure reliable performance in demanding production environments

Parameters

Model	JDM-1080EM
Max Paper Size	1080×880mm
Min Paper Size	360×320mm
Speed	10-100m/min
Paper Thickness (Round Knife)	80-500gsm (Above 100gsm easy to adjust, E type corrugated paper)
Paper Thickness (Hot Knife)	≥157gms
Overlap Precision	≤±1.5mm
Film Thickness(common micrometer)	10/12/15
Common Glue Thickness	4-10g/m²
Pre-Gluing Film Thickness	1005, 1006, 1206g/m² (1508 and 1208 suit deep embossing paper)
Main motor power	5kw
Whole machine power	70kw
Working power	30-45kw
Power	380V-50Hz-3P
Working Pressure	15Mpa
Air consumption	80m²/h
Cable Thickness	25mm2
Weight	7800kgs
Dimension (layout)	11500×2800×2950mm (Pre-stacked track inclu-ded)

Mechanical details

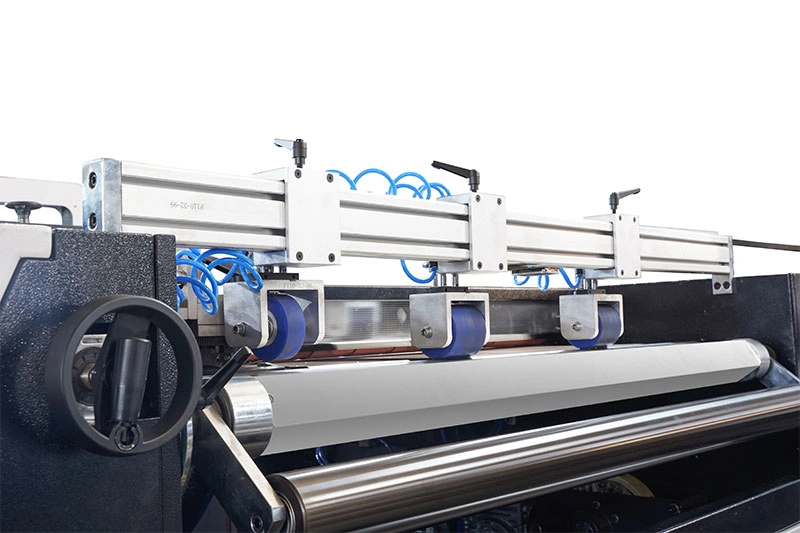

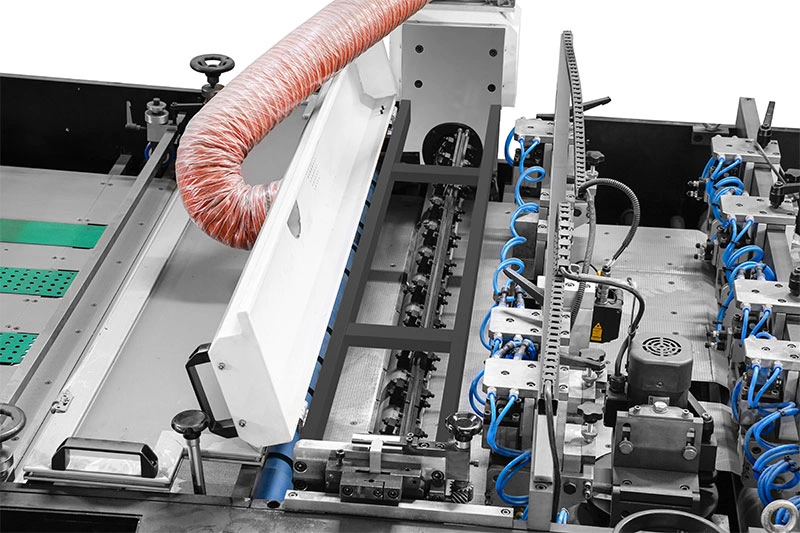

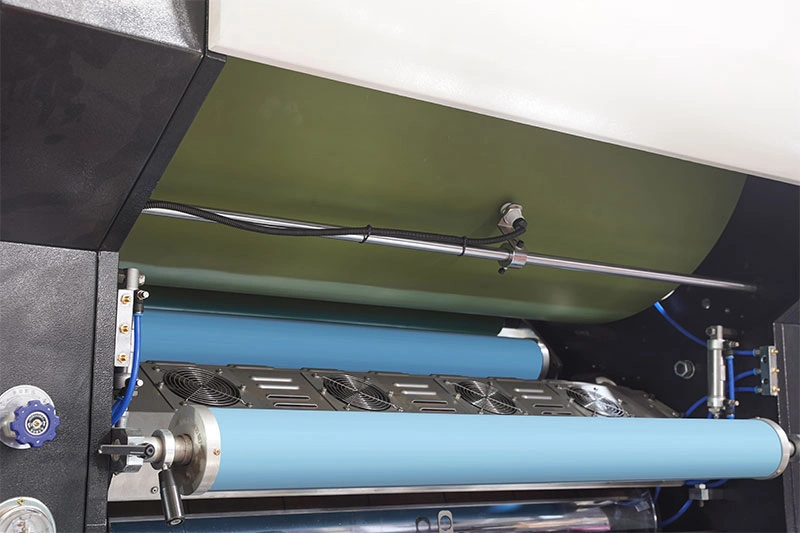

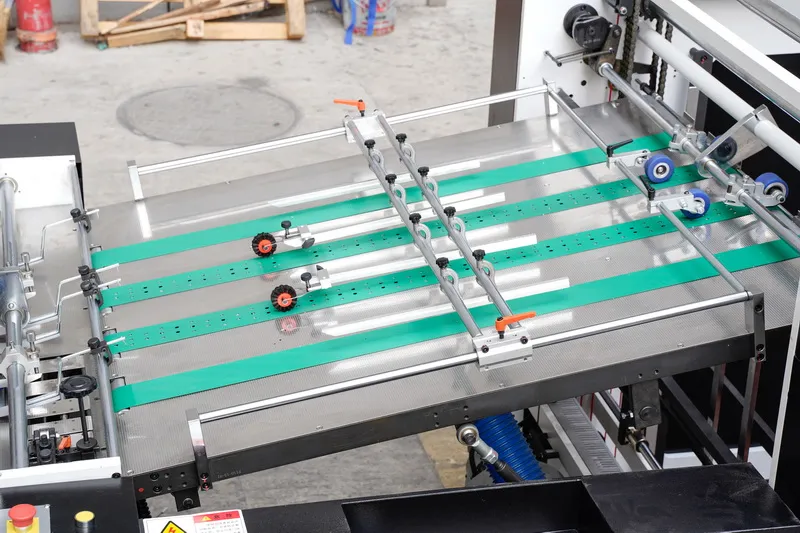

Feeding Unit

4 suckers for lifting and 4 suckers for conveying structure. Max Speed 12000 sheets/h
The paper feeding table has upper and lower over-limit protection
The height of non-stop feeding can reach 1150mm, pre-stacking device, non-stop feeding

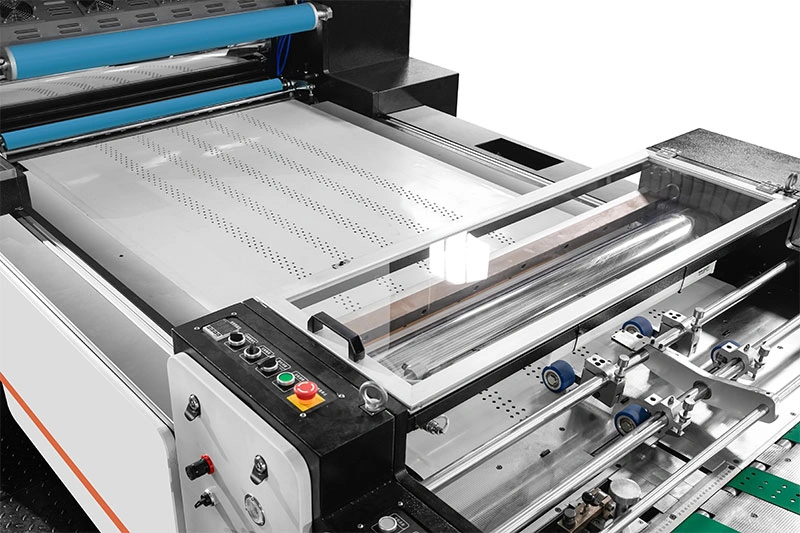

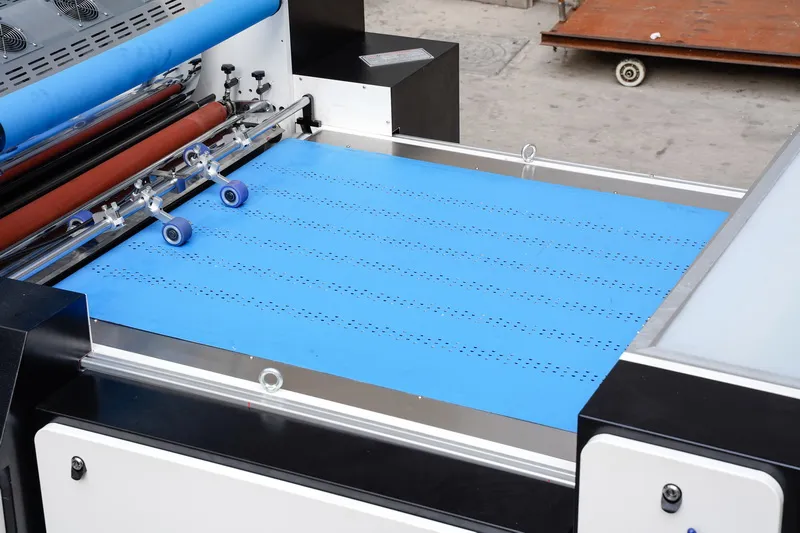

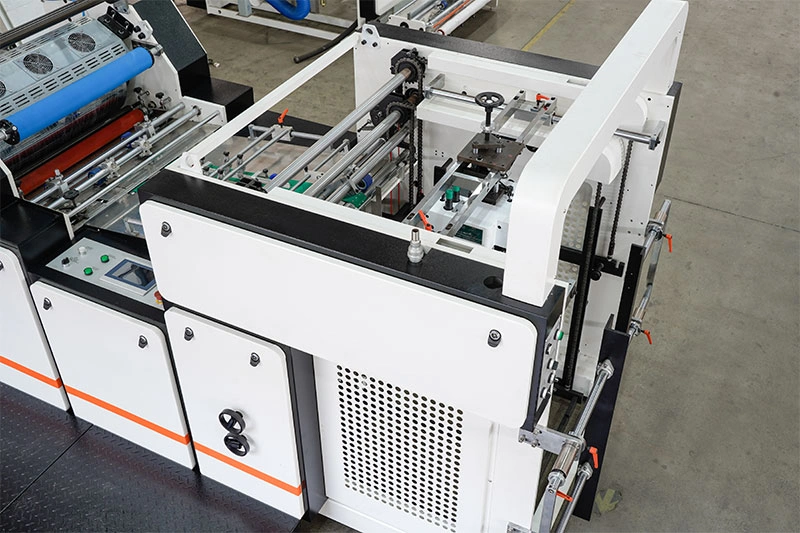

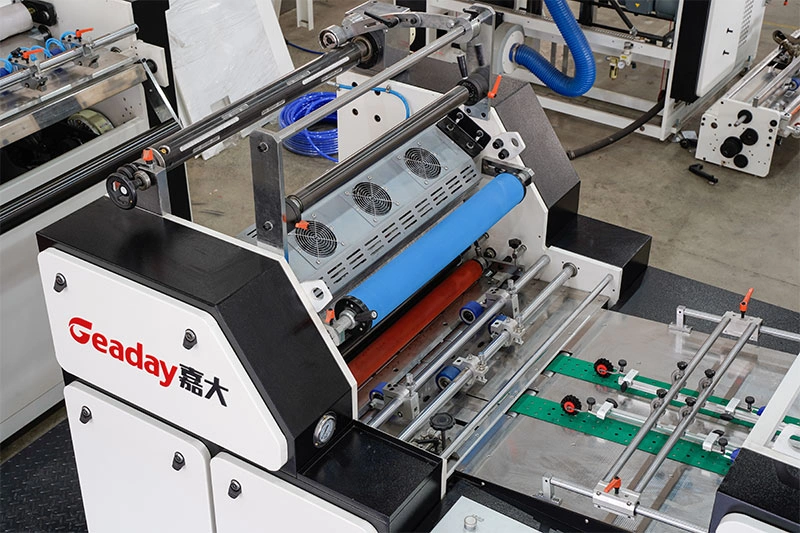

Conveying Table and Overlap

The conveying table adopts customized stainless steel corrugated board The brush
The brush wheel and rubber pressing wheel move smoothly
Servo motor overlap, improve accuracy of lap, error≤±1m

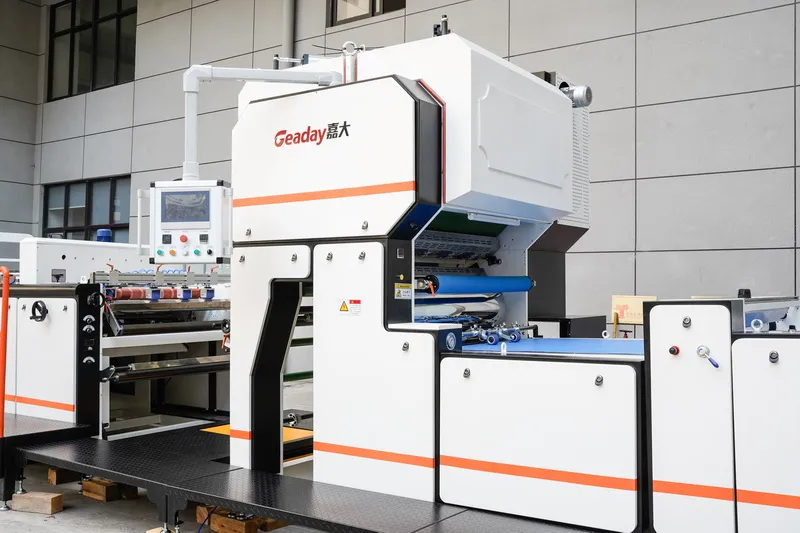

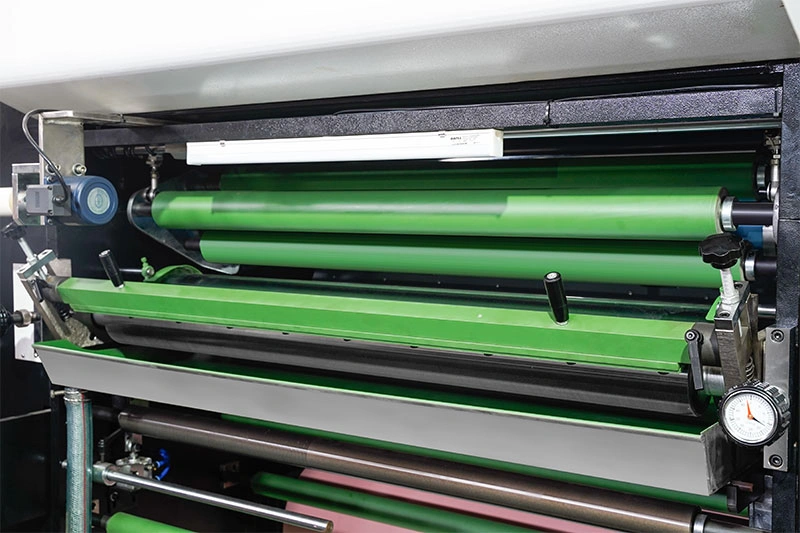

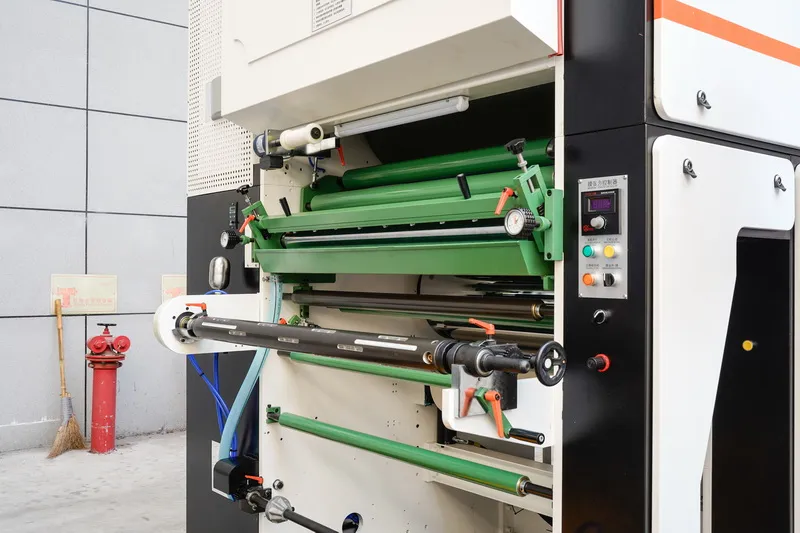

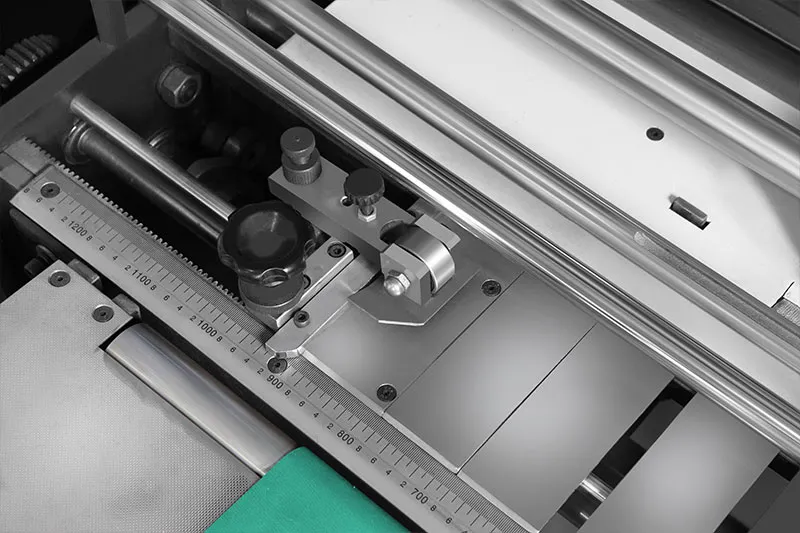

Laminator Host

The diameter of the drying roller is increased to 800mm, and the oven has a built-in stainless steel fin electric heating tube.
The heating roller adopts electromagnetic heating system, which heats up and cools down quickly, and the temperature is stable, and the built-in temperature measuring probe can accurately read the temperature.
The diameter of the heating steel roller is 400mm, and the pressure can be up to 12T.
The gluing roller and metering roller are controlled and driven by independent motors, and the glue control is more uniform.
The machine stops in an emergency, the film pressing frame rises automatically, the film is automatically reversed, and the film is not contaminated by glue. The gluing system Teflon process treatment is convenient for cleaning non-sticky adhesives.
The total control touch screen design is concise.
Waste film winding device.

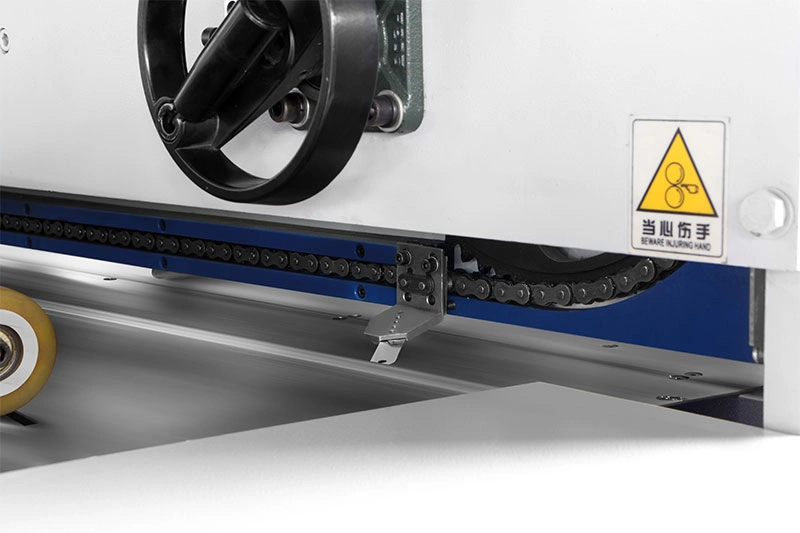

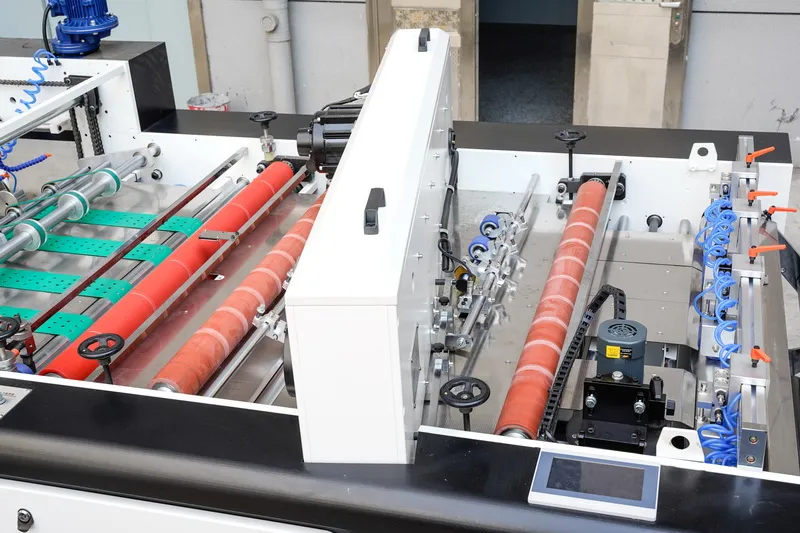

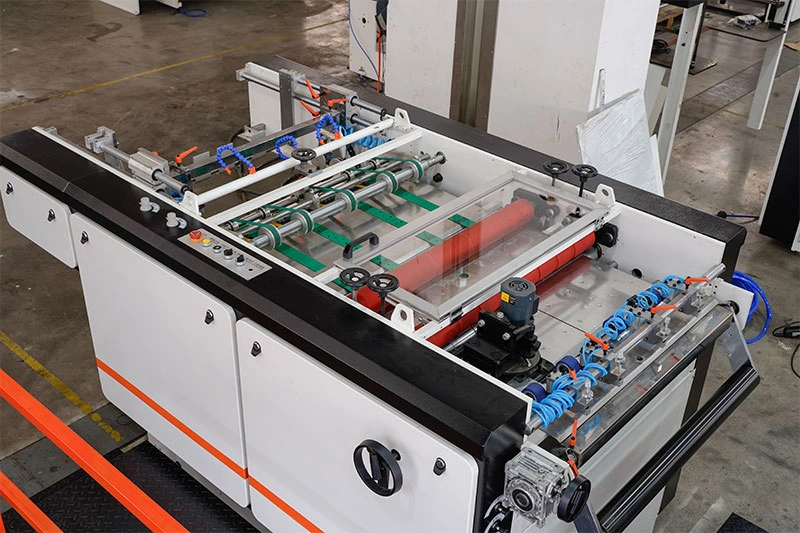

Cutting Unit

The paper cutter is equipped with a tension controller and an anti-curl device to ensure that the paper is flat and not curled.
The paper cutting part contains grinding wheel, disc knife and chain knife for slitting, meeting customers' requirements for slitting films of different materials.
The bounce roller is controlled by an independent motor, and the paper can be separated by using the speed difference.
Hot knife low pressure direct heating and slitting without tail film, detecting paper thickness and slitting, accurate and efficient.

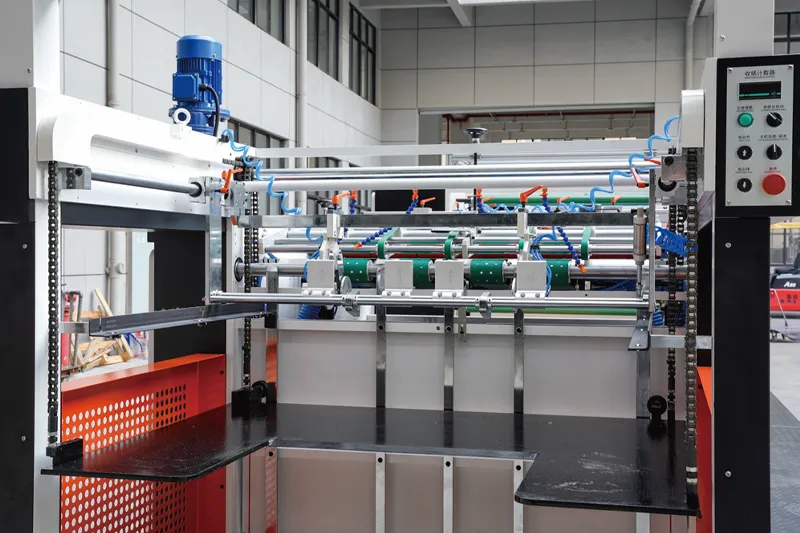

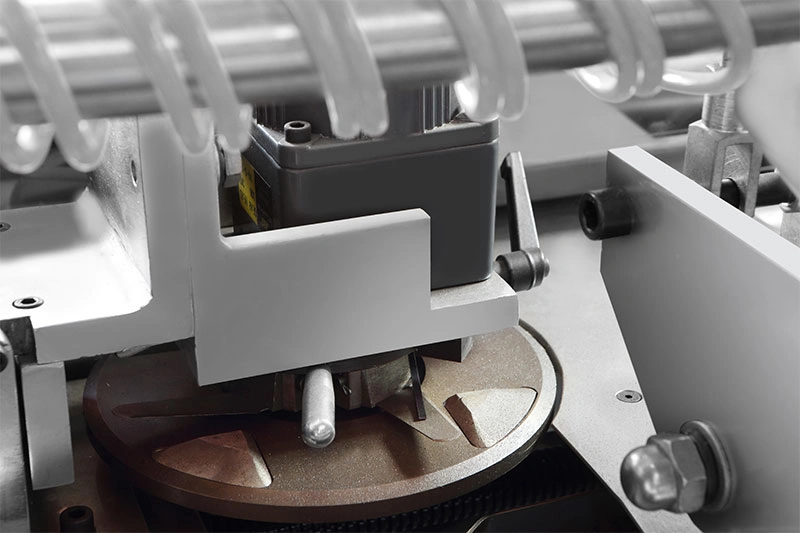

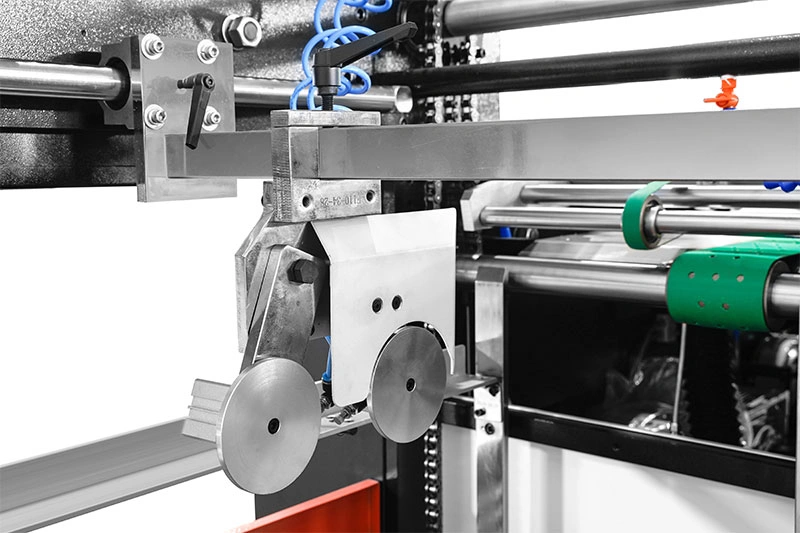

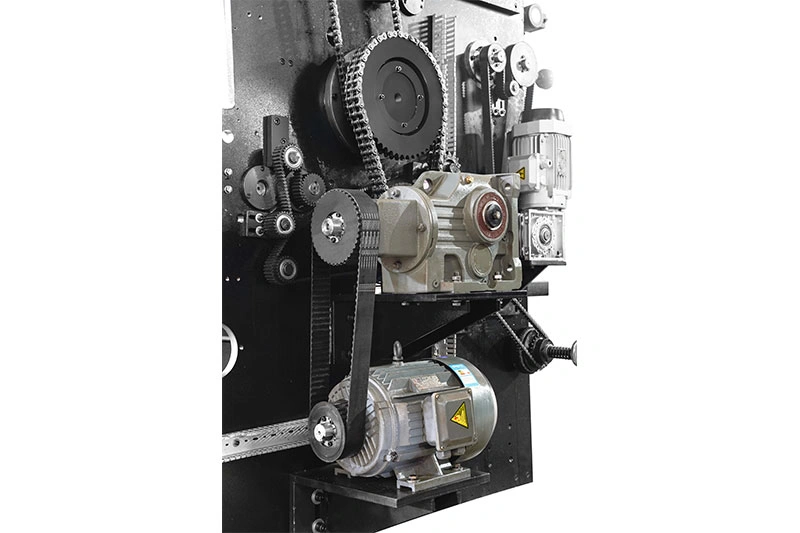

Non-stop Collector

Adopt pneumatic paper sorting structure to ensure the neatness of the paper and facilitate the next process.
With a reduction wheel to prevent the paper from being damaged due to too fast hitting the baffle.
Counting electric eye, the number of running paper is displayed on the display screen at the take-up machine, which can be cleared and accumulated.
Induction electric eye, sensing the length of the paper, if the length of the paper changes, the belt will accelerate, and the baffle of the take-up machine will overturn and lift the paper.
