This high-speed pre-coated film laminating machine with embossing combines coating and embossing in one step. It handles 80-500gsm paper at 10-100m/min, suitable for books, packaging, and advertising materials.

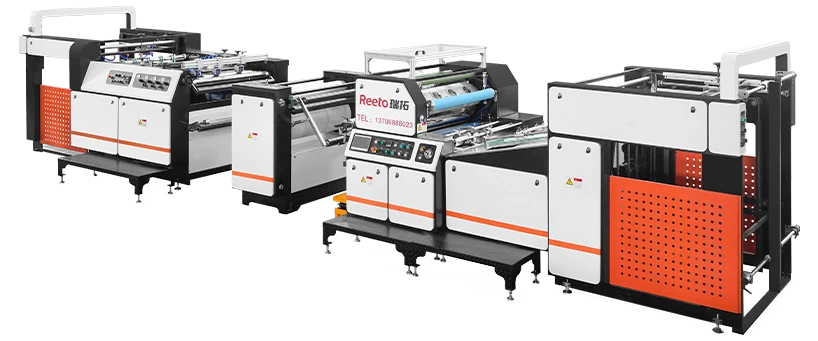

The High-Speed Pre-Coated Film Laminating Machine with Embossing is a state-of-the-art post-printing packaging finishing solution designed to meet the evolving demands of the domestic laminating market. This fully automatic large-format equipment integrates embossing and coating in a single process, significantly boosting production efficiency by eliminating intermediate steps.
With a maximum paper size of 1080×880mm and the ability to handle paper thickness from 80-500gsm (round blade) or ≥157gms (hot knife), it offers versatile processing capabilities. Operating at speeds from 10-100m/min, it delivers high-volume production without compromising quality.
Ideal for various applications including book covers, mid-to-high-end packaging boxes, and advertising materials, this machine features a compact yet robust design. It incorporates advanced systems such as automatic paper feeding, powder removal, gluing, drying, and finished product collection. The PLC programmable controller with touch screen interface ensures intuitive operation, while servo motor and frequency conversion motor control guarantee high automation levels.
Key components from internationally renowned brands ensure reliability and durability. This cost-effective equipment is the preferred choice for large and medium-sized laminating companies looking to enhance product quality and streamline production processes.
》 One-step Embossing and Coating: Combines two processes into one, significantly improving production efficiency.
》 Wide Paper Compatibility: Handles paper thickness from 80-500gsm (round blade) or ≥157gms (hot knife).
》 High-speed Operation: Achieves production speeds of 10-100m/min for rapid output.
》 Comprehensive Automation: Integrates automatic paper feeding, powder removal, gluing, drying, and collection systems.
》 Precision Control: PLC programmable controller with touch screen interface for intuitive operation.
》 Quality Components: Uses internationally renowned brand components for reliable performance.
》 Compact Design: Space-saving structure without compromising functionality or stability.
》 Versatile Applications: Suitable for book covers, packaging materials, advertising paper, and more.
| Model | JDM-1080EM |
| Maximum paper size | 1080×880mm |
| Minimum paper size | 360×320mm |
| Speed | 10-100m/min |
| Paper thickness (round blade) | 80-500gsm (Above 100gsm easy to adjust, E type corrugated paper) |
| Paper thickness (hot knife) | ≥157gms |
| Overlap accuracy | ≤±1.5mm |
| Film thickness (standard micrometer) | 10/12/15 |
| Ordinary glue thickness | 4-10g/m² |
| Pre-coated film thickness | 1005,1006,1206g/m² (1508 and 1208 suit deep embossing paper) |
| Main motor power | 5kw |
| Total power | 70kW |
| Operating power | 30-45kw |
| Power | 380V-50Hz-3P |
| Work pressure | 15Mpa |
| Gas consumption | 80m³/h |
| Cable thickness | 25mm² |
| weight | 7800kgs |

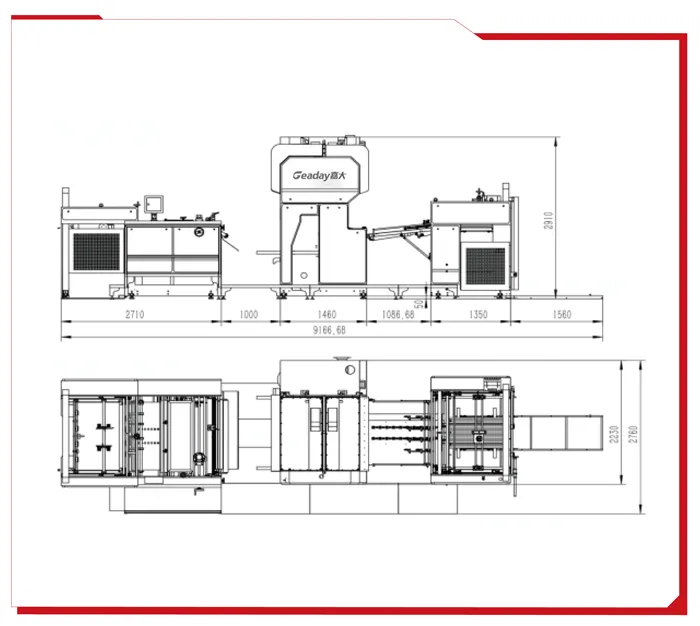

| External dimensions (layout) | 11500*2800*2950mm (Pre-stacked track included) |
Click to consult and instantly connect with your dedicated printing consultant.
It combines embossing and coating in one single process, significantly improving production efficiency by eliminating an entire processing step.
It offers versatile processing, handling paper from 80-500gsm (round blade) or ≥157gms (hot knife), suitable for various projects.
Designed for high-volume output, it operates at speeds of 10-100m/min without compromising on the final embossing and lamination quality.
No, a PLC controller with a touch screen interface ensures intuitive operation, while servo motors guarantee high automation levels.
Its cost-effective design and streamlined process make it the preferred choice for medium and large laminating companies.
