Fully Automatic High-Speed Vertical Laminating Machine

The automatic laminating machine employs advanced automation technology to ensure uniform film coverage and offers broad applicability.

Overlap Precision:
≤+ 15mm
Film Thickness(common micrometer):
10/12/15
Common Glue Thickness:
4 -10 g/m²

Get your customized solution

Product Introduction

The fully automatic laminating machine is a large-format post-printing packaging finishing equipment designed and launched by our company in accordance with the current domestic laminating market's growing demand and to meet people's growing needs and applications. It is designed for OPP film gluing, non-glue film, pre-coated film and paper lamination.

ook covers such as: books and magazines, textbooks, stamp albums, portable paper bags, various promotional materials, exquisite albums, illustrations, covers, packaging decoration, etc.;

Product Features

》 The appearance of the equipment is painted, and the process and structure have been changed, making it more beautiful and more stable.

》 The paper feeder has the function of non-stop paper feeding, saving time and increasing production capacity.

》 The equipment adopts servo edge lamination, which is more accurate and stable.

》 Powder removal device (optional) to achieve better laminating effect.

》 Chrome-plated roller gluing is adopted, with high accuracy <0.008mm, saving glue.

》 Strong hot air drying system is adopted to achieve rapid drying.

》 The hot pressing roller adopts electromagnetic heating, and the temperature is more uniform;it achieves higher laminating quality.

》 Equipped with electric hydraulic pressure structure.

》 The electrical appliances adopt centralized control systems of brands such as Omron, which are highly safe.

》 The film change is equipped with a hydraulic film-loading vehicle, which is more convenient and faster.

》 More humanized design, easy to operate.

Parameters

Model	TY-1460W	TY-1650W
Max.Sheet Size	1100×1460mm（L×W）	1300×1650mm（L×W）
Min.Sheet Size	350×460mm（L×W）	400×460mm（L×W）
Max.Coating Area	1090×1440mm（L×W）	1290×1640mm（L×W）
Coating Registration Accuracy	±0.15mm	±0.15mm
Coating Layer Thickness	0.15mm ~0.60mm	0.15mm ~0.60mm
Sheet Thickness	105 ~ 600 gsm	120 ~600 gsm
Up to	Up to 5-6000sheet/hour (Depends on paper size, dimensions and quality)	Up to 4-5000sheet/hour (Depends on paper size, dimensions and quality)
Power Required	68kw/Water-based: oil-based total power	76kw/Water-based: oil-based total power
Machine Dimension	11800×3400×2300 mm	12840×3400×2360 mm
Machine Weight	10200kg	12000kg

Mechanical details

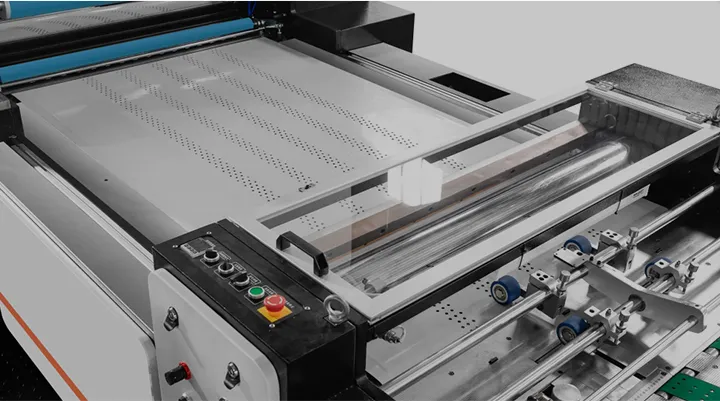

Conveying Table And Overlap

The conveying table adopts customized stainless steel corrugated board
The brush wheel and rubber pressing wheel move smoothly
Servo motor overlap, improve accuracy of lap, error≤±1m

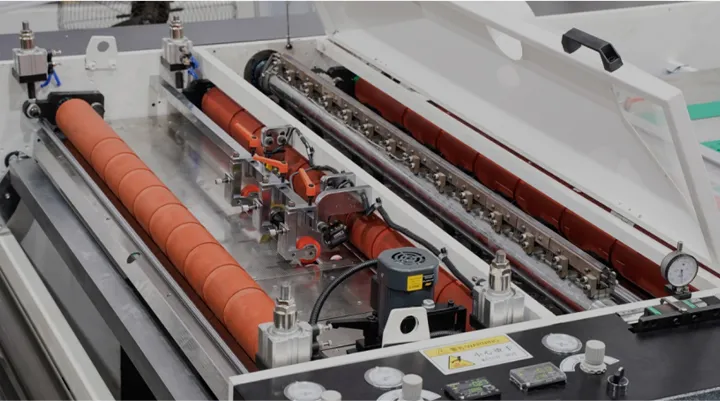

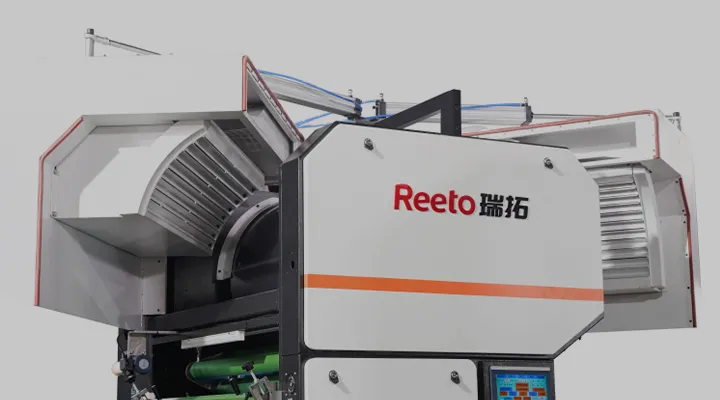

Laminator Host

The diameter of the drying roller is increased to 800mm, and the oven has a built-in stainless steel fin electric heating tube.
The heating roller adopts electromagnetic heating system, which heats up and cools down quickly, and the temperature is stable, and the built-in temperature measuring probe can accurately read the temperature.
The diameter of the heating steel roller is 400mm, and the pressure can be up to 12T.
The gluing roller and metering roller are controlled and driven by independent motors, and the glue control is more uniform.
The machine stops in an emergency, the film pressing frame rises automatically, the film is automatically reversed, and the film is not contaminated by glue.
The gluing system Teflon process treatment is convenient for cleaning non-sticky adhesives. The total control touch screen design is concise. Waste film winding device.

Introduction To Each Part

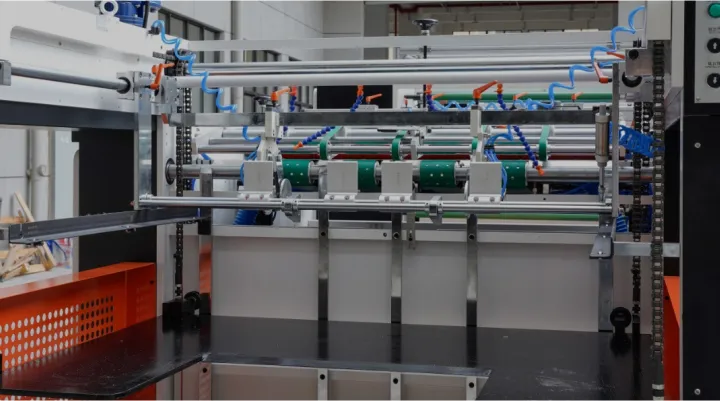

The paper cutter is equipped with a tension controller and an anti-curl device to ensure that the paper is flat and not curled.
The paper cutting part contains grinding wheel, disc knife and chain knife for slitting, meeting customers' requirements for slitting films of different materials.
The bounce roller is controlled by an independent motor, and the paper can be separated by using the speed difference.
Hot knife low pressure direct heating and slitting without tail film, detecting paper thickness and slitting, accurate and efficient

Non-Stop Collector

Adopt pneumatic paper sorting structure to ensure the neatness of the paper and facilitate the next process.
With a reduction wheel to prevent the paper from being damaged due to too fast hitting the baffle.
Counting electric eye, the number of running paper is displayed on the display screen at the take-up machine, whi
Induction electric eye, sensing the length of the paper, if the length of the paper changes, the belt will accelerate, and the baffle of the take-up machine will overturn and lift the paper.
